Brand Name : XCMG
Model Number : SLM2600S
Certification : ISO9001
Place of Origin : CHINA
MOQ : 1 Piece
Price : Negotiation
Payment Terms : L/C, T/T, Western Union
Supply Ability : 5000pcs/year
Delivery Time : Full Payment 7-15 Work Days
Packaging Details : by Sea/by Bulk/by Frame/Container
CAPACITY : 4 batches/h or 10.4 cubic/hour
Weight : 7000KG
Bucket(hydraulic gate) : 0.6 cubic
TIRE : 12R-22.5
CLIMB : 40°
Turning radius : 2800 mm
Output per lot: 2.6 cubic metres.
Drum rotation: discharge port height 1.65 M, horizontal rotation 270 degrees, tank can be raised and lowered.
ENGINE: Yuchai 4102 supercharged, diesel, water cooled, 4 cylinder, 2200 rpm, rated power 77.3KW.
Drive mode: The engine is directly connected to the280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive.
SPEED: dual altitude, low speed 0-25 kph, high speed 0-40 kph.
Driver's seat: Widen luxurious cab, anti-rollover, anti-falling object type.
Hydraulic System: Open type oil, two gear pumps to participate in the work.
Product Parameter
Model | SLM2600S |
CAPACITY | 4 batches/h or 10.4 cubic/hour |
Weight | 7000KG |
Bucket(hydraulic gate) | 0.6 cubic |
TIRE(steel wire high pressure vacuum tire) | 12R-22.5 |
Power System | 24V |
Length, width, height / wheelbase / Wheelbase | 7150mm*2650mm*3000mm*2900mm*2100mm |
CLIMB | 40° |
Turning radius | 2800 mm |
Product Photos
![]() |

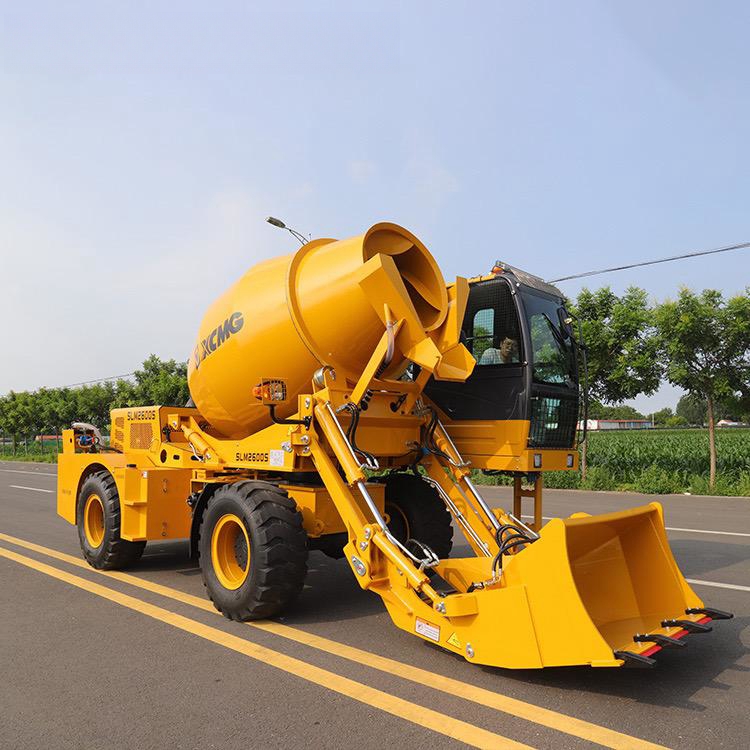

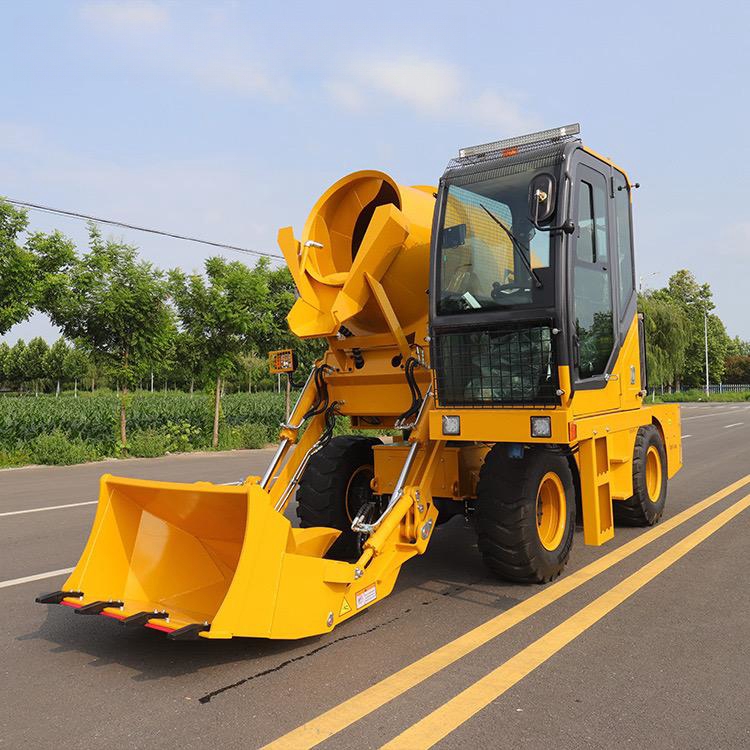

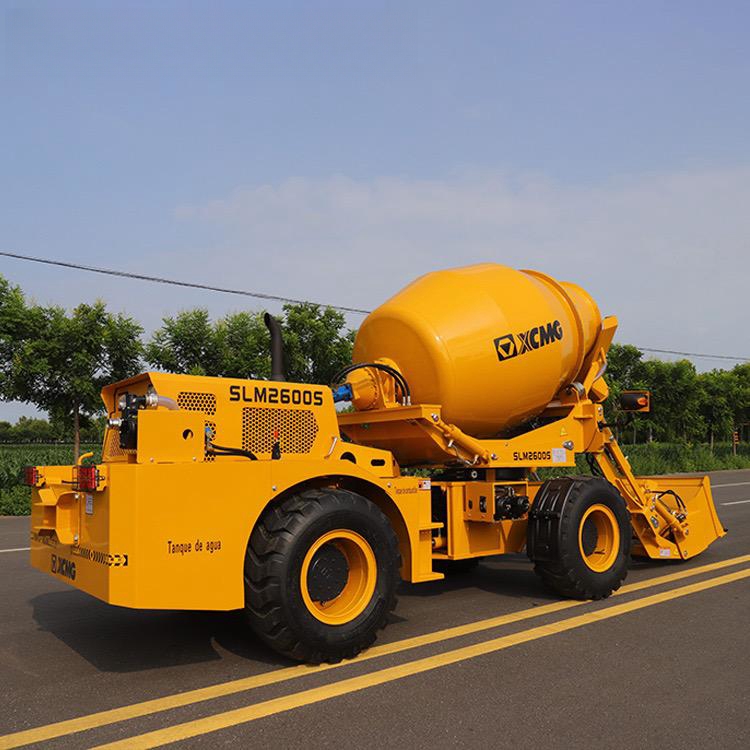

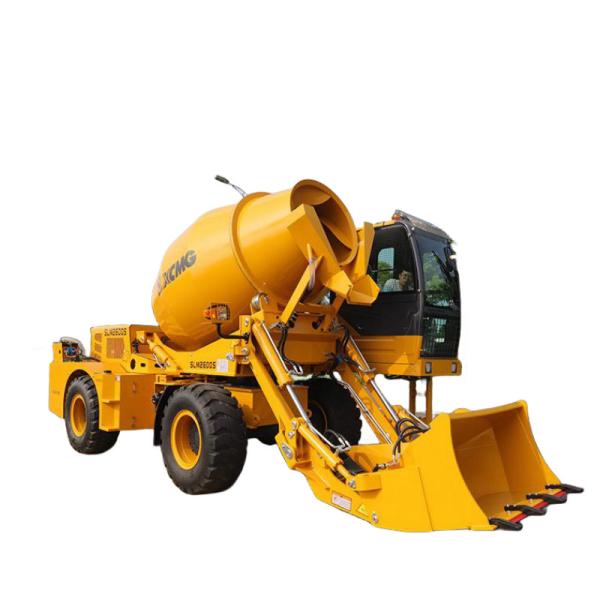

XCMG HT2.6 Cubic Left Front Drive Self Loading Mixer Truck SLM2600S For Sale Images |
