XCMG HT4.0 Cubic High-Proportioning Self Loading Mixer Truck SLM4000I

Name: XCMG HT40 Cubic HighProportioning Self Loading Mixer Truck SLM4000I
Brand: XCMG
Price: 1 USD

Brand Name : XCMG

Model Number : SLM4000I

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000pcs/year

Delivery Time : Full Payment 7-15 Work Days

Packaging Details : by Sea/by Bulk/by Frame/Container

CAPACITY : 5 batches/h or 20 cubic/hour

Weight : 9500KG

Bucket(hydraulic gate) : 0.7 cubic

TIRE(steel wire high pressure vacuum tire) : 12R-22.5

Power System : 24V

CLIMB : 45°

Contact Now

XCMG HT4.0 cubic high-proportioning self-loading mixer SLM4000I

Output per lot: 4.0 cubic metres.

Drum rotation: discharge port height 2.2 meters, tank horizontal rotation 270 tank can be raised and lowered.

ENGINE: Yuchai power ycd4p22t 125, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 91KW.

Drive mode: The engine is directly connected to the 315 torque converter through the drive shaft to the transmission with dual high and low speed through the drive shaft to the front and rear axles to achieve 4-wheel drive.

SPEED: dual altitude, low speed 0-25 kph, high speed 0-50 kph.

Product Parameter

Model	SLM4000I
CAPACITY	5 batches/h or 20 cubic/hour
Weight	9500KG
Bucket(hydraulic gate)	0.7 cubic
TIRE(steel wire high pressure vacuum tire)	12R-22.5
Power System	24V
Length, width, height / wheelbase / Wheelbase	7500mm * 2950mm * 3500mm * 2590mm * 2200mm
CLIMB	45°
Turning radius	5860 mm

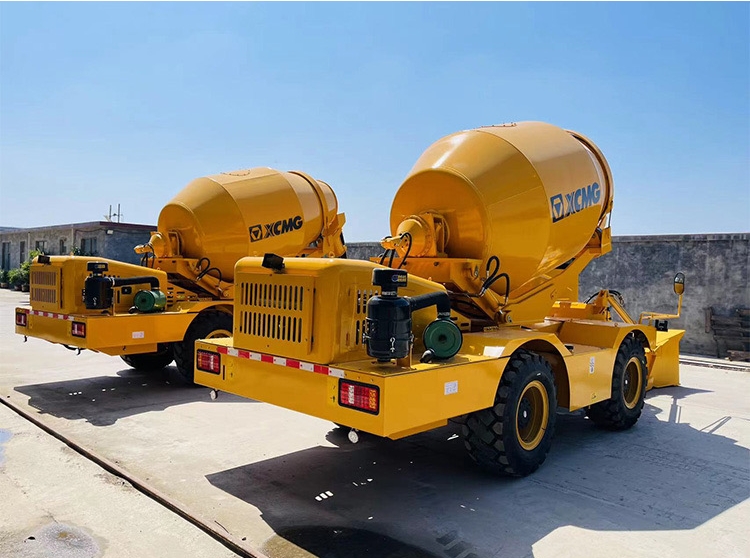

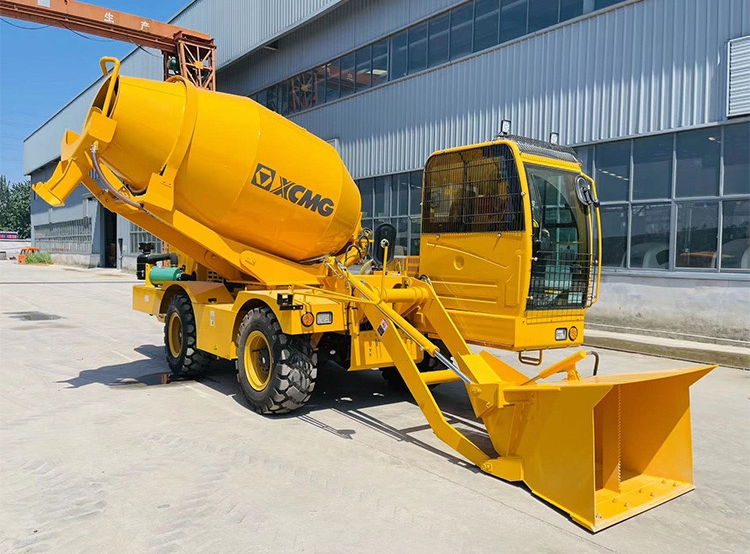

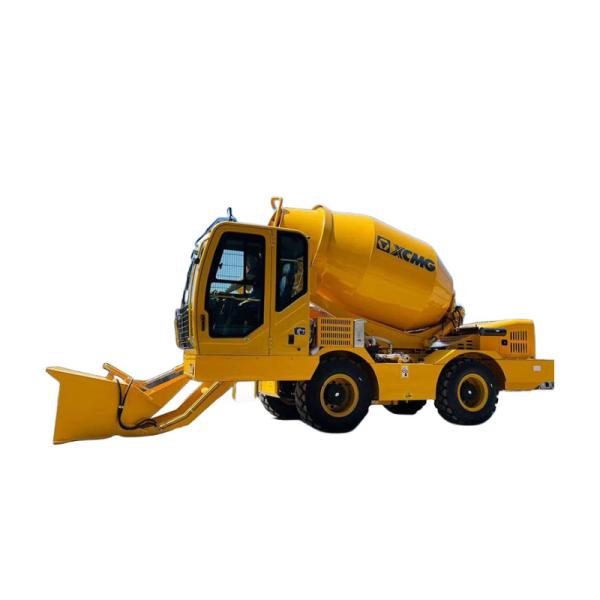

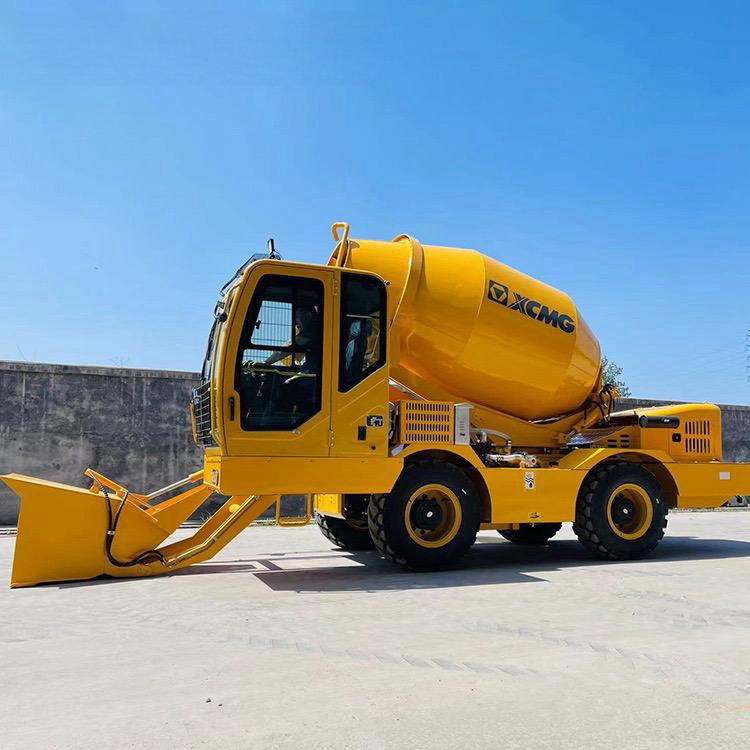

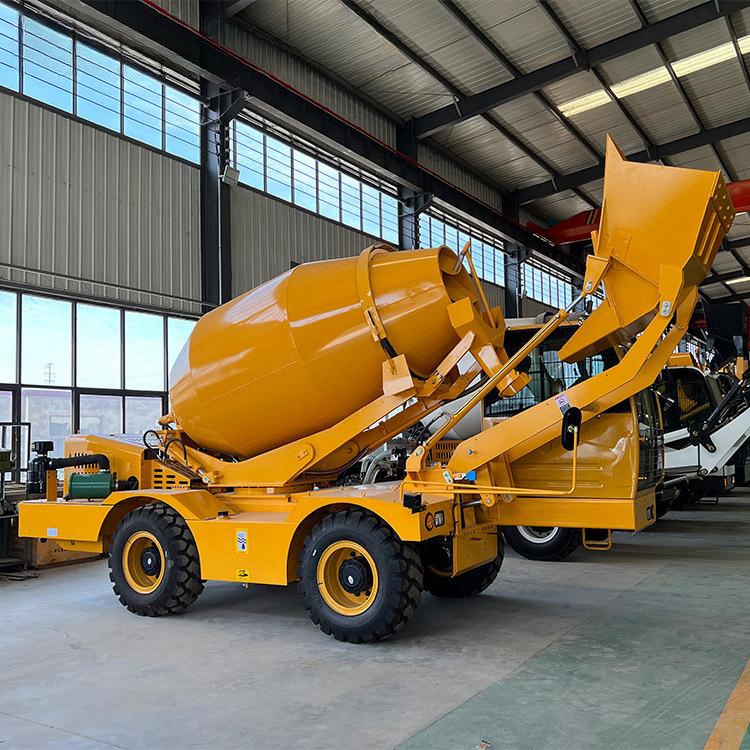

Product Photos

XCMG HT4.0 Cubic High-Proportioning Self Loading Mixer Truck SLM4000I

Product Tags:

SLM4000I Self Loading Mixer Truck

High Proportioning Self Loading Mixer Truck

XCMG HT4.0 Cubic High-Proportioning Self Loading Mixer Truck SLM4000I Images
