30 Tons Howo 20cbm Sinotruk 336hp 6x4 SINOTRUK Tipper Truck 30 Tons

Product Categories

Shandong Heavy Industry Machinery Co.,Ltd.

Contact Now

Name: 30 Tons Howo 20cbm Sinotruk 336hp 6x4 SINOTRUK Tipper Truck 30 Tons
Brand: SINOTRUK
Price: 1 USD

Brand Name : SINOTRUK

Model Number : ZZ3257V3847JB2

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : negotiation

Payment Terms : L/C, T/T, D/A, Western Union

Supply Ability : 5000pcs/year

Delivery Time : Full payment 15-20 work days

Packaging Details : Naked, frame, container

Tire : 12R22.5 tubeless tire 11pcs

Fuel type : Diesel

Emission standard : Euro II

Gearbox : HW19710

Box Dimension : 5600x2300x1500mm

Overall dimensions : 8500x2495x3300mm

Contact Now

30 Tons Howo 20cbm Sinotruk 336hp 6x4 SINOTRUK Tipper Truck

1. Chinese famous heavy duty chassis brand in China---Sinotruk

2. Unique metal support ring welded structure allowing good cylinder stability

3. Excellent driving axle with large loading capacity, good stability and high safety factor

arranty

5.Low oil consumption with strong horse power 371hp

6. Large volumn fuel tank for 400L

Product parameters

Truck Chassis	Driving type 6x4 SINOTRUK TIPPER TRUCK

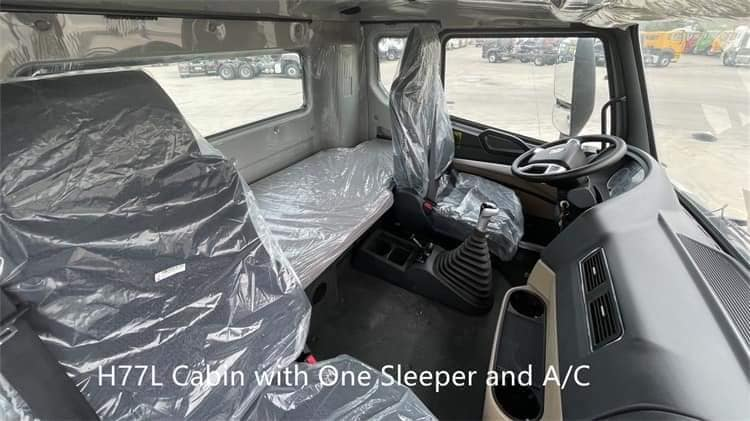

Cabin	HOWO 76 Standard cab, with two seats and one bed, ]with air condition

Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		8500x2495x3300
	Wheel base (mm)		3825+1350
Weight in KGS	Tare Weight		12600

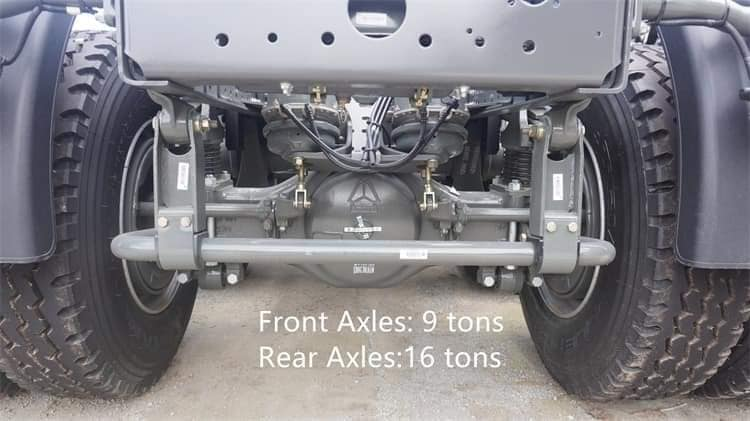

	Front axles HF9 loading capacity		9000
	Rear axles HC16 loading capacity		2x16000
	Total loading capacity		35000
Engine	Brand		SINOTRUK
	Model		WD615.47
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)/(RPM)		371HP
	Emission standard		Euro II
Gearbox	HW19710, 10 forward & 2reverse
Clutch	Reinforced diaphragm clutch 430
Steering Gear	power steering, hydraulic steering with power assistance
Fuel tank (L)	300
Tire	12R22.5 tubeless tire 11pcs

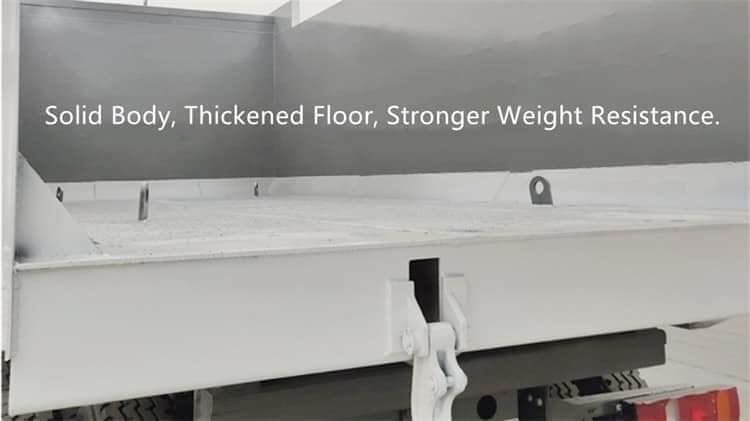

Dump body	Dimension	Lx W x H		5600x2300x1500
	Thickness	Floor 8mm, side 6mm
Hydraulics	Tipping Type: Front tipping HYVA brand

Photo Shows

30 Tons Howo 20cbm Sinotruk 336hp 6x4 SINOTRUK Tipper Truck 30 Tons
