Home > Concrete Mixer Truck >

Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity

Product Categories
Shandong Heavy Industry Machinery Co.,Ltd.
Contact Now

Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity

  • 1
  • 2
  • 3

Brand Name : SINOTRUK

Model Number : ZZ1257N3247B1R

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, T/T, D/A, Western Union

Supply Ability : 5000pcs/year

Delivery Time : Full payment 15-20 work days

Packaging Details : Naked, frame, container

Kerb Weight : 12600kg

GVW : 25000kg

Engine : WP10.340E22

Motor : ARK MF089

Max. Speed : 90 km/h

Overall Dimension : 8375*2496*3853mm

Contact Now

Sinotruk HOWO 8 10 12 14 16 Cbm Variable Capacity on-Site Hydraulic Discharge Drum Mixing Concrete Mixer

Product Parameter

MAIN SPECIFICATIONS
Model ZZ1257N3247B1R(RHD) Steering BO SCH
Engine Brand SINOTRUK Gross Vehicle Weight 25000kg
WP10.340E22 Dead Weight 12600kg
Maximum Output 340HP Tyres 12.00-20 Nylon tyre
Rated engine power 250/2200 Cab Right hand driving HOWO76 single sleeper
Air-condition
Transmission HW19709XST
 Max.Driving Speed 90 km/h
Front Axle SINOTRUK Model:HF9
9		 Geometric volume M3 13.5
Max.loading:9000kg
9		 Agitating capacity M3 8
Rear Axle SINOTRUK Model:HC16
16		 Discharging remain ration <0.2%
Max.loading:32000kg
32
Pump ARK PV089 Water tank volume 400L
Motor ARK MF089 Drum slope 15
Reducer TOPUNION P58 Cooler YS-18L
Overall Dimension(mm) 8375*2496*3853

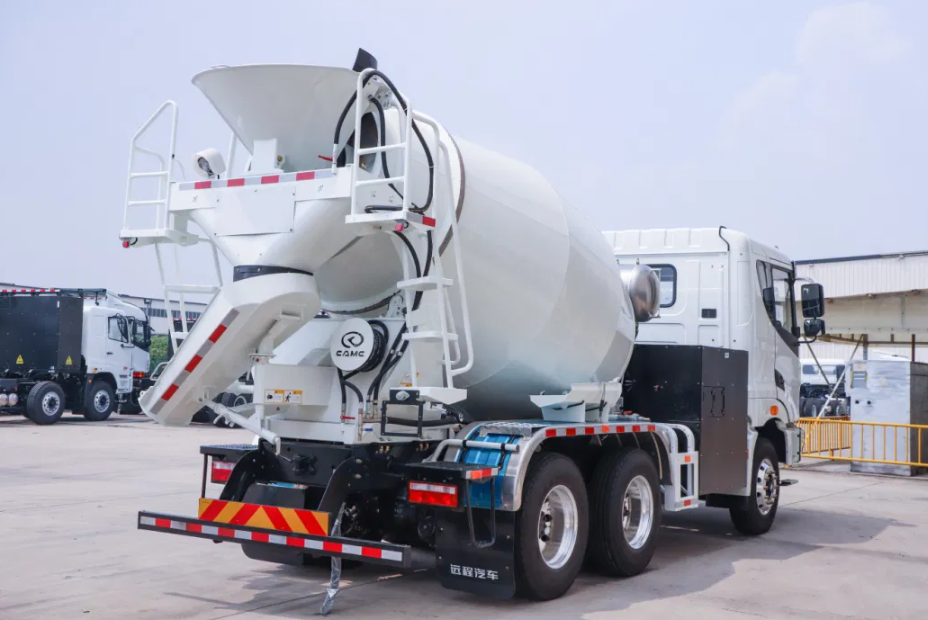

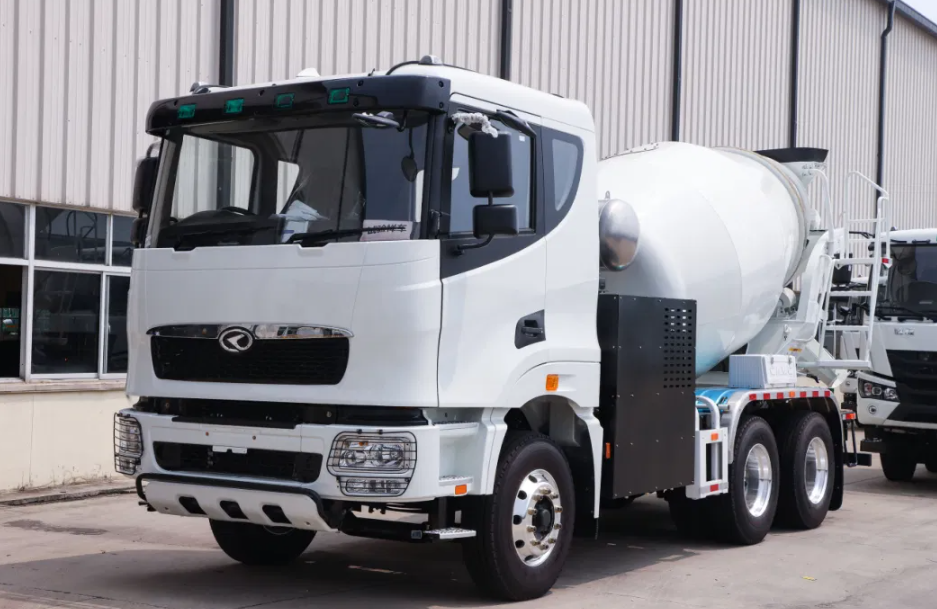

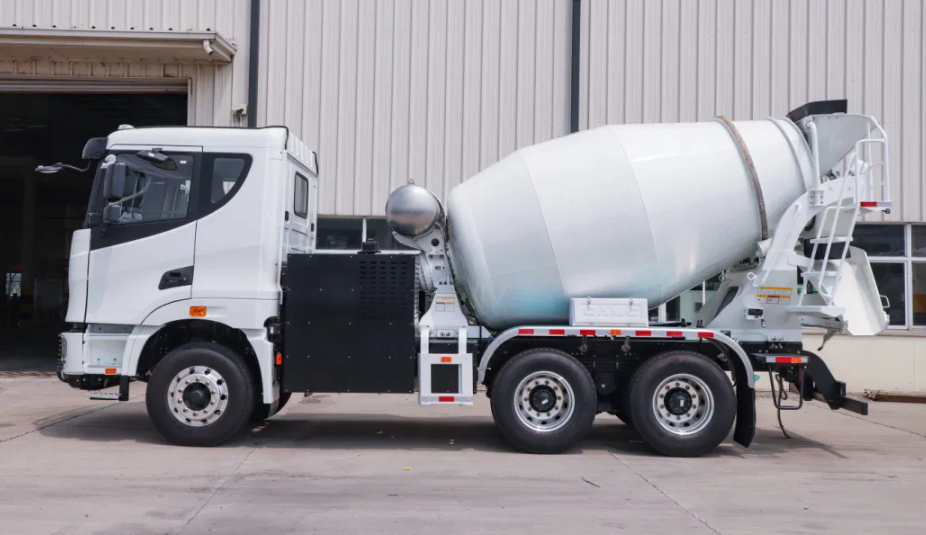

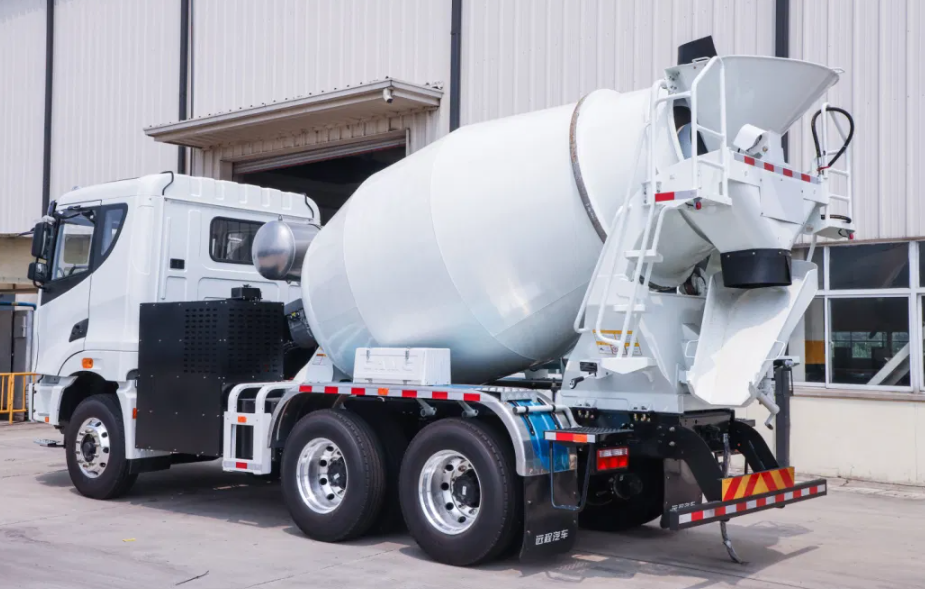

Detailed Photos
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
