Brand Name : SINOTRUK
Certification : ISO9001
Place of Origin : CHINA
MOQ : 1 Piece
Price : Negotiation
Payment Terms : L/C, T/T, D/A, Western Union
Supply Ability : 5000pcs/year
Delivery Time : Full payment 15-20 work days
Packaging Details : Naked, frame, container
Model Number : ZZ3257N3847C
Curb weight : 12500kg
Payload : 25-30ton
Front Overhang : 1500mm
Rear Overhang : 1870mm
Gearbox : HW15710
Overall dimension : 8545*2496*3350mm
HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
Product Parameter
MAIN DESCRIPTION | ||||
Overall Dimension | 8545mm*2496mm*3350mm (L*W*H) | |||
Payload | 25-30ton | Curb Weight | 12500kg | |
Front Overhang | 1500mm | Rear Overhang | 1870mm | |
Wheelbase | 3825mm +1350mm | |||
CHASSIS | ||||
Chassis Brand | SINOTRUK HOWO | |||
Driving Type | 6x4 | |||
Cab | HW76, left hand drive, air-conditioner, one bed | |||
Engine and Power | Brand: SINOTRUK, diesel engine, 375HP /371HP, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard | |||
Steering | ZF8098, hydraulic steering with power assistance | |||
Transmission | HW15710, 10 forward speeds and 2 reverse | |||
Clutch | Model: 430, diaphragm clutch | |||
Front Axle | HF9, load capacity 9 ton, drum brake | |||
Rear Axle | HC16 tandem axle, load capacity 13000kg x2, ratio 5.73 | |||
Tire | 12.00-20, 11units including 1 spare tire | |||
CARGO BODY | ||||
Inside Dimension | 5600mm*2300mm*1500mm(L*W*H) | |||
Hydraulic Cylinder | Ventral T-type lift system | |||
Steel sheet thickness | Floor 8mm, side wall 6mm | |||
Tailgate | One-piece tailgate with upper articulation, safety lock system |
Tips to build your truck body | ||
Transport medium | Floor(mm) | Side(mm) |
Soil or Stone | 8 | 4 |
Construction Waste | 10 | 6 |
Big Ore | 12 | 8 |
Coal | 6 | 4 |
clay | 8 | 4 |
Grain or Chemical fertilizer | 6 | 4 |
Detailed Photos
![]() |

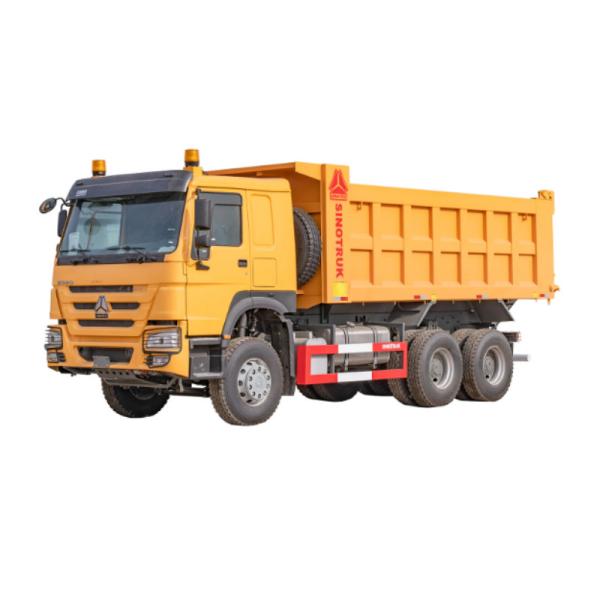

Sinotruk HOWO 30 Ton Sino Cargo 20cbm 6X4 371HP 380HP 400HP off Road Dumper/Tipper/Dump Trucks Images |
