Shacman F3000 Dump Truck LHD/Rhd Construction Waste Transport Self-Loading Tipper Truck

Product Categories

Shandong Heavy Industry Machinery Co.,Ltd.

Contact Now

Shacman F3000 Dump Truck LHD/Rhd Construction Waste Transport Self-Loading Tipper Truck

Name: Shacman F3000 Dump Truck LHDRhd Construction Waste Transport SelfLoading Tipper Truck
Brand: SHACMAN
Price: 1 USD

Brand Name : SHACMAN

Model Number : SX3255

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, T/T, D/A, Western Union

Supply Ability : 5000pcs/year

Delivery Time : Full payment 15-20 work days

Packaging Details : Naked, frame, container

GVW : 25000kg

Engine : WP10.380E32

Emission Standard : Euro 2

Transmission : 10JSD160

Wheelbase : 3775+1400mm

Overall dimension : 8865*2496*3690mm

Contact Now

Shacman F3000 Dump Truck LHD/Rhd Construction Waste Transport Self-Loading Tipper Truck

Dump truck also called tipper, dumper truck which composed of chassis, hydraulic system, cargo body, PTO and so on. The hydraulic system could be HYVA or Chinese top, the material could be carbon steel or high-strengthen steel; the lifting type could be middle lifting or front lifting.

Dump is divided into 2 types which is rear tipper and side tipper. Rear tipper is more common which mainly used for transporting sand, stone, gravel, coal, earthwork and other construction materials.

Product Parameter

Vehicle Description
Overall dimensions	886524963690mm
GVW	25000kg
Curb weight	12300kg
Chassis brand	SHACMAN F3000

Up-parts Description
Cargo dimension	5600, 600023001500, 1800mm
Loading capacity	18-22cbm
Material	Carbon steel
Thickness	Side	6mm, 8mm, 10mm
	Bottom	8mm, 10mm, 12mm
Hydraulic system brand	Imported or Chinese brand
Lifting style	Middle or front lifting

Chassis Description
Chassis model	SX3255
Cab	F3000, With A/C
Wheelbase	3775+1400mm
Tire specification	12.00R20
Tire quantity	12+1 units
Engine	Engine model	WP10.380E32
	Emission standard	Euro 2
	Exhaust/output	9726ml/280kw
	Horse power	380hp
Gear box	Model	10JSD160
Gear box	Type	10 forward speed &2 reverse
Brake system	Full air
Axle	Front	7.5T-MAN
Axle	Rear	16T*2-MAN
Suspension	Front	Leaf spring with shock absorber
Suspension	Rear	Leaf spring
Fuel tanker	Type	Aluminum fuel tanker
Fuel tanker	Capacity	400L

Detailed Photos

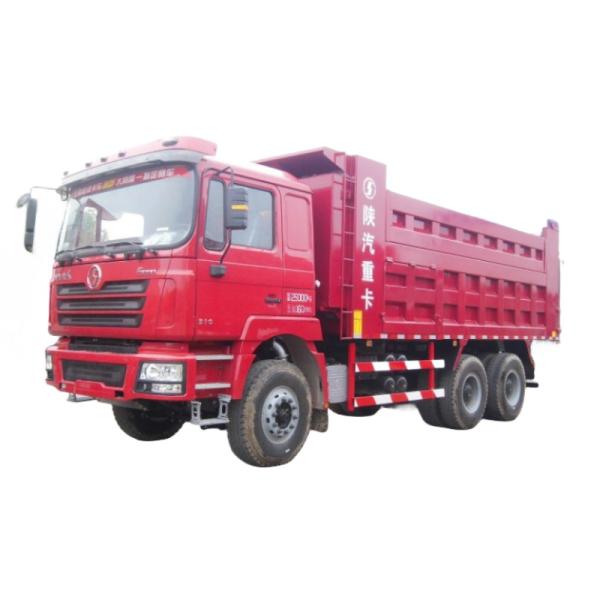

Shacman F3000 Dump Truck LHD/Rhd Construction Waste Transport Self-Loading Tipper Truck

Shacman F3000 Dump Truck LHD/Rhd Construction Waste Transport Self-Loading Tipper Truck
