6X4 380 Hp Dump Truck 10 Wheeler Foton Brand Tipper Truck

Product Categories

Shandong Heavy Industry Machinery Co.,Ltd.

Contact Now

Name: 6X4 380 Hp Dump Truck 10 Wheeler Foton Brand Tipper Truck
Brand: FOTON
Price: 1 USD

Brand Name : FOTON

Model Number : ZZ3253DLPKB

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : negotiation

Payment Terms : L/C, T/T, D/A, Western Union

Supply Ability : 5000pcs/year

Delivery Time : Full payment 15-20 work days

Packaging Details : Naked, frame, container

Wheelbase : 3800+1325mm

Engine : WP12.38

Transmission : 12JSD180T

Steering : AM90L-S

Box Dimension : 5600x2300x1500mm

Overall dimensions : 8500x2550x3450mm

Contact Now

6X4 380 Hp Dump Truck 10 Wheeler Foton Brand Tipper Truck

Product parameters

Chassis	ZZ3253DLPKB
Engine	WP12.38 380 HP ,EURO3 WEICHAI BRAND ENGINE

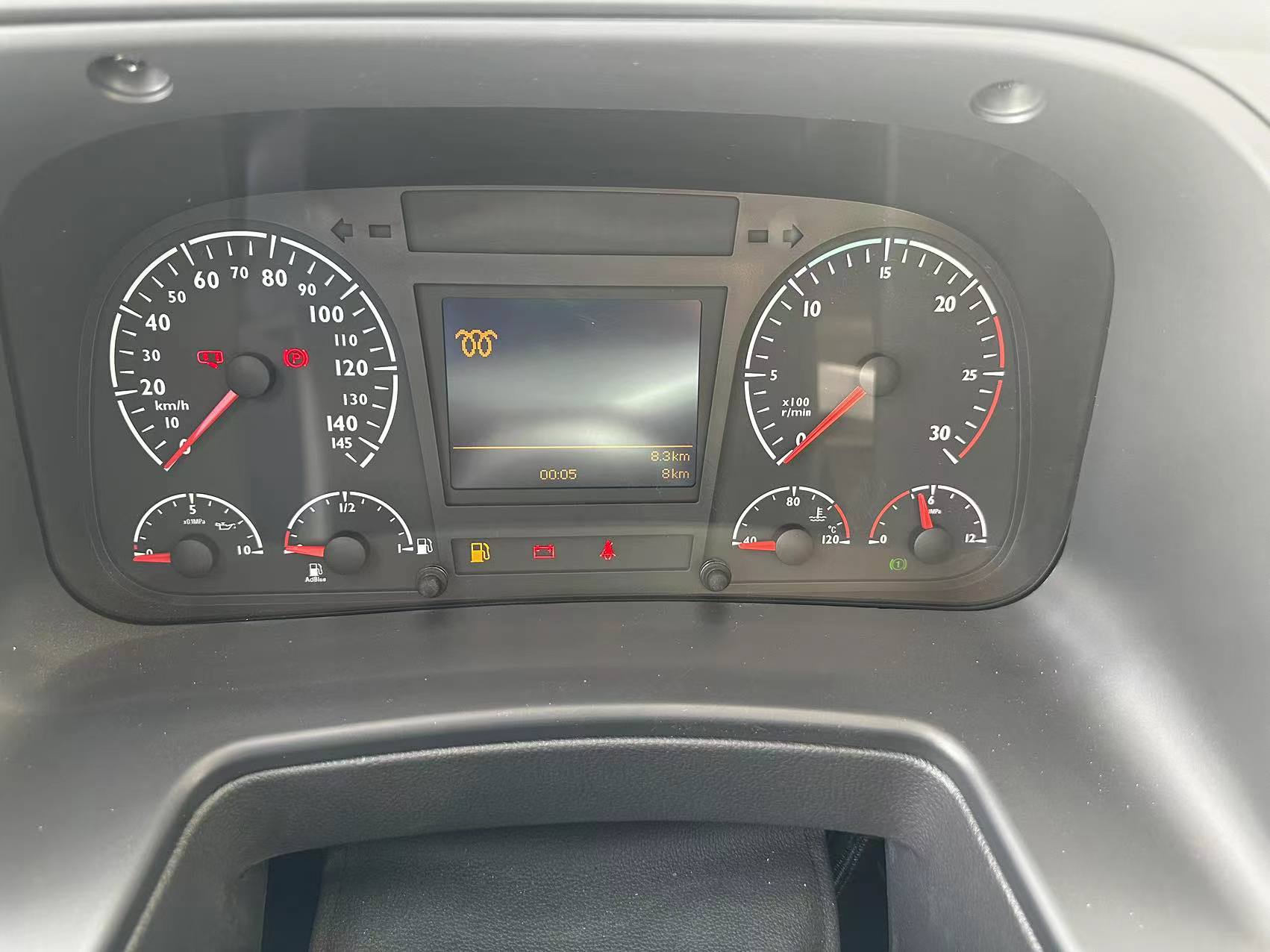

Cab	ETX2490 cab , one berth, safety belt for drive and co-drive, two seats, aircondition,English panel .
Transmission	12JSD180T with PTO, 12 forward and 2 reverse torque 1800N.M
Front axle	7.5T *1 axle Steering axle
Driving axle	13 hub reduction axle *2, ratio 5.26
Fuel tanker volume	350L aluminum alloy material
Wheel base	3800+1325mm
Max speed	85km/h
Steering	AM90L-S with hydraulic assistence power
Tires	12.00R20,10+1 pcs one spare tire,Radial tyre
Brake system	Air brake with WABCO value.
Cargo body size(mm)	560023001500,19.32M3
Overall dimension(mm)	850025503450
Thickness	bottom 8, side 6 mm Q345B material
Loading capacity	35TON
Lifting system	Ventral lifting by hydraulic pump system
Truck chassis main beam thickness	8+8/300 mm
Bumpers	rear and front bumpers in steel material
Color	White or as customized

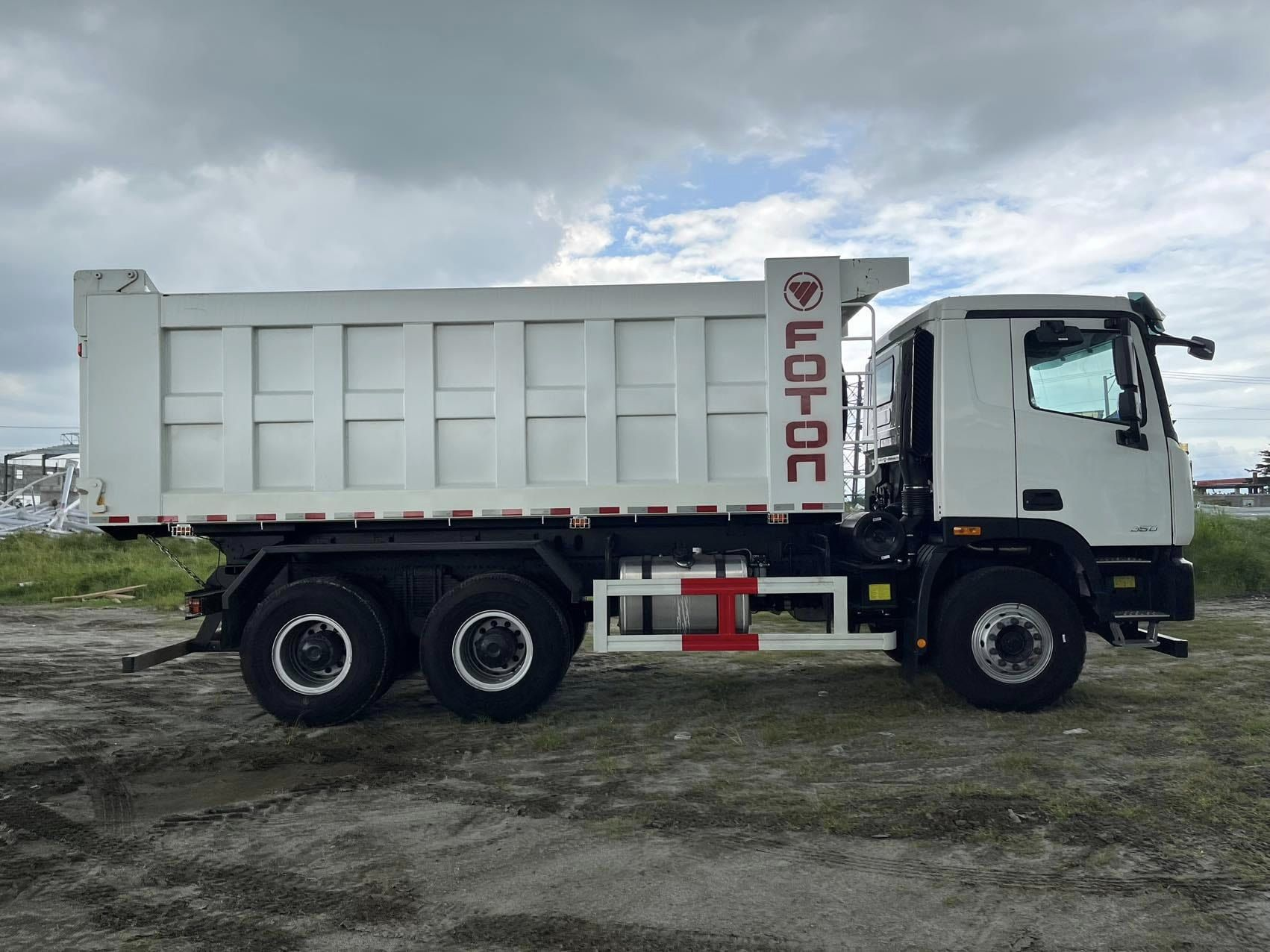

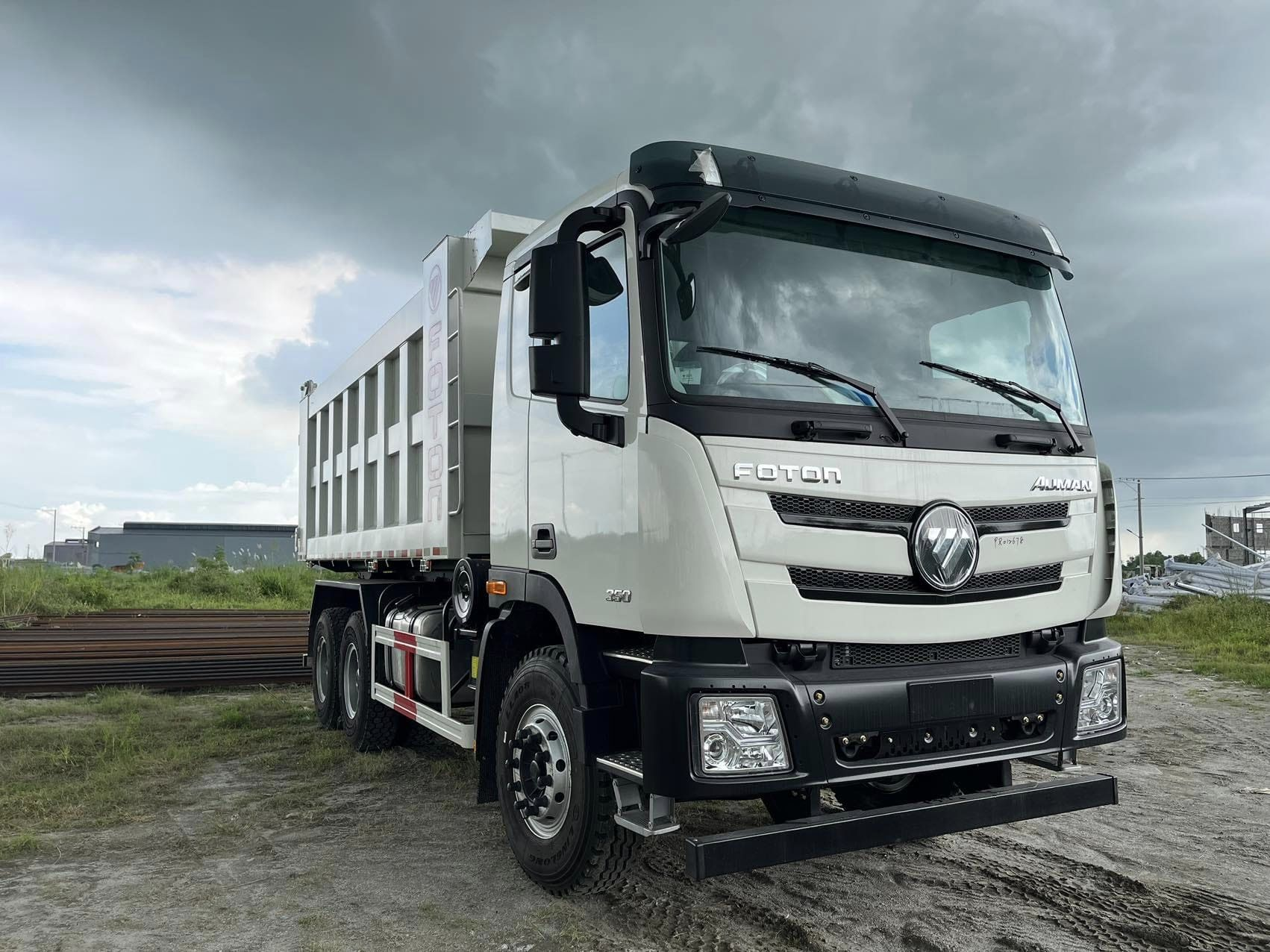

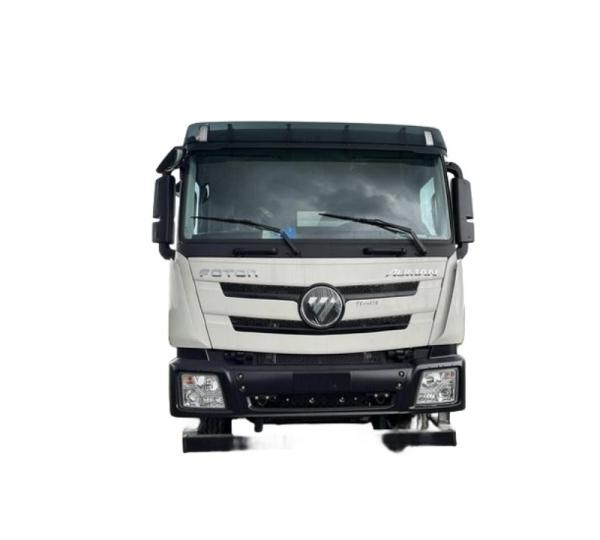

Photo Shows

6X4 380 Hp Dump Truck 10 Wheeler Foton Brand Tipper Truck
