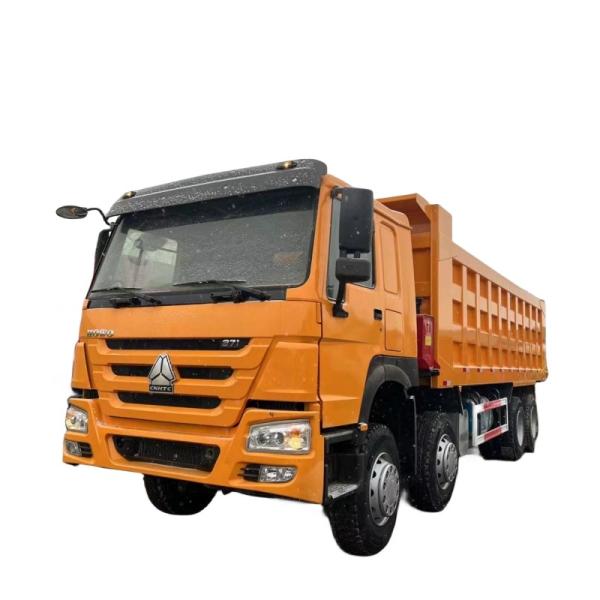

| Model | ZZ3257M3857 |
| Cabin | HW76, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating
and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse
stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler |
|
Engine
| Model | WD615.47 |
| | Horse Power (Hp/rpm) | 371/2200 |
| | Max.Toruqe(Nm/rpm) | 1820/1100-1500 |
| | Displacement (L) | 9.726 |
| | Type | DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic
controlled diesel engine |
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance |
| Transmission | HW19712, 12 speeds forward and 2 speeds reverse. |
| Front Axle | HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs. |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42,
4.8) |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs,
bogie spring and stabilizer |
| Steering System | Z.F power steering, model Z.F8118, hydraulic steering with power assistance |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating;
Auxiliary brake: Engine exhaust brake |
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah |
| Tire | 12.00R20 |
| Fuel Tank(Gas Tank) Capacity (L) | 400L Diesel Tank |
| Dead Weight (kg) | 12530 |
| Gross Vehicle Weight (kg) | 33000 |
| Gross Combination Weight (kg) | 80000 |
| Overall Dimension(L*W*H)(mm) | 8345×2560×3450 |
| Wheelbase(mm) | 3825+1350 |
| Front/Rear Overhang( mm) | 1500/725 |
| Wheel Track(Front/Rear)(mm) | 2022/1850 |
| Min. Ground Clearance(mm) | 314 |
| Approach/Departure Angle( °) | 16/70 |
| Max. Speed (km/h) | 92 |
| Max. Gradebility (%) | ≥40 |
| The Bucket Size | 5600*2300*1500mm |
