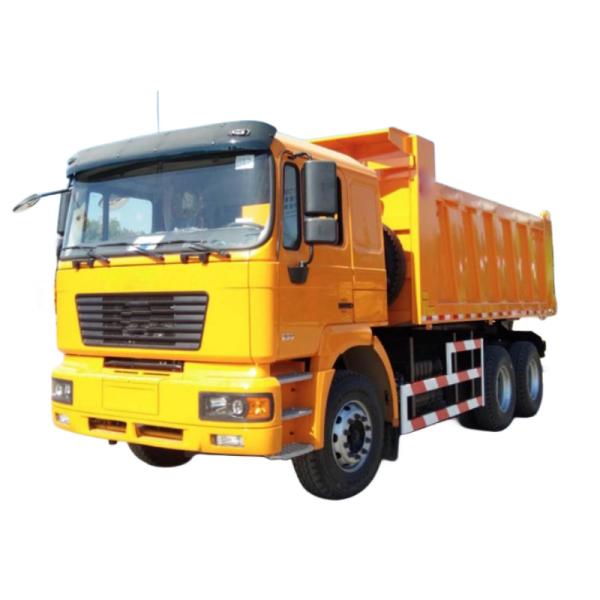

Shacman F3000 Series 6*4 Dump Truck for Mining Construction
Advantage:
Expectations and demands are on the raise and the F3000 series is the solution. With many configurations available to choose; from the standard tipper or trailer trucks to highly specialized vehicles for that tough job, the F3000 has you covered. No matter what the job entails, our qualified professionals can help you pick out the perfect vehicle.
Cumins core power upgrade, FAST twin center shaft structure gearbox, HaDe high ratio single stage axle, vehicle power increased by 20%, Cumins ISM engine
High performance: Improved muffler, improved ground clearance, new exhaust system layout, lowest center of gravity, new stabilizing technology
Reinforced driver cab, upgraded oil bath type air filter, strengthened transmission shaft, improved cab front suspension, new front axle stabilizer bar and muffler, imported cab turning shaft, off road racing quality cab damping spring. Mature power delivery system, increased overall efficiency, higher uptime, lower maintenance cost.
Product Parameter
| Truck Model | SX3255DT384CR |
| Max. running speed (km/h) | 85 |
| Drive System | 6× 4 |
Dimensions
(L*W*H)(mm) | Overall | 8385*2490*3450 |
| Dump body | 5600*2300*1500 |
| Cargo box volume | 19 cubic meter, 20 cubic meter is available |
| Cargo box thickness (mm) | Bottom 8, side 6 |
| Hydraulic lifting system | middle lifting or front lifting HYVA |
| Approach / depature angle (° ) | 28 / 30 |
| Kerb weight (kg) | 12500 |
| Total mass (kg) | 25000 |
| Wheel base (mm) | 3775+1400 |
| Overhang (mm) (front/rear) | 1525 / 1710 |
| Track width (mm) (front/rear) | 1860 / 1800 |
| Engine | ISME385 30 ( Cummins engine, Euro 2 ) |
| Horse power | 385 hp |
| Gearbox | 10JSD180 (Fast gear) |
| Clutch | 430 Diaphragm type |
| Steering | Z-F technology |
| Cab | MAN F3000 flat roof Cabin with A/C & sleeper |
| Axle | Front | 9.5 Ton MAN with Drum brake |
| Rear | 16 Ton MAN axle,Double reduction 5.262 |
| Tyre | 12.00R20 |
| Oil tank | 400L |
| Optional | JACOB Brake |

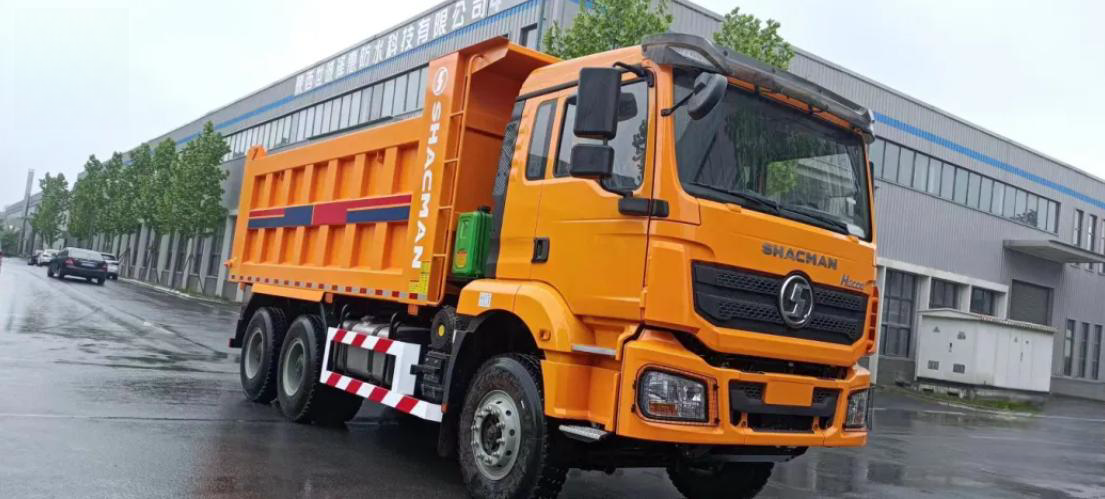

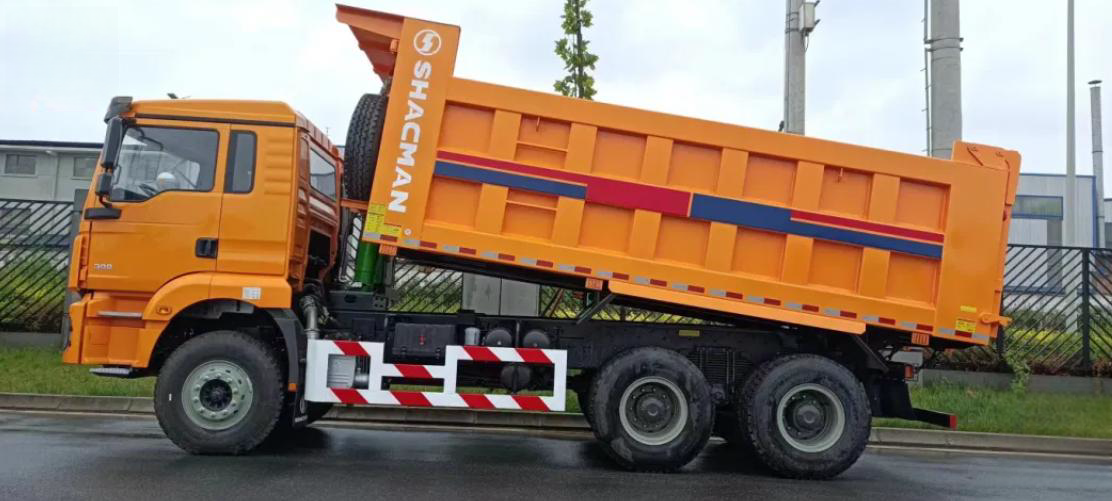

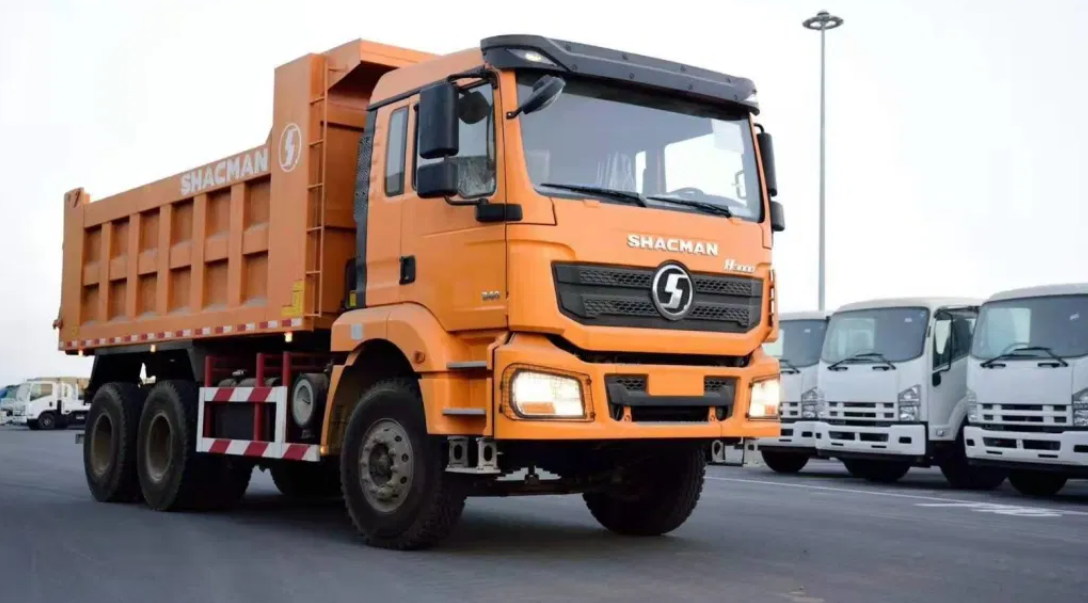

Detailed Photos
