China FAW 6X6 420HP Euro5 All Wheel Drive Dumper Tipper Dump Truck

Shandong Heavy Industry Machinery Co.,Ltd.
Contact Now

China FAW 6X6 420HP Euro5 All Wheel Drive Dumper Tipper Dump Truck

Brand Name : FAW

Model Number : JP5

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, T/T, D/A, Western Union

Supply Ability : 5000pcs/year

Delivery Time : Full payment 15-20 work days

Packaging Details : Naked, frame, container

Wheelbase : 3675+1350mm

Emission standards : Euro 5

Power : 420HP

Gearbox : CA10TAX190M2

Clutch : ф430 Clutch

Tire : 315/80R22.5

Contact Now

China FAW 6X6 420HP Euro5 All Wheel Drive Dumper Tipper Dump Truck

Advantage:

Representing FAW's 60 plus years of truck manufacturing experience, our JH6 range of on-highway and vocational trucks incorporates the high levels of innovation, reliability, comfort and driveability that have made FAW an established name in the heavy truck industry for productive and cost effective operation. Offering world class comfort and styling combined with advanced fuel-efficient high horsepower engines, the J6P takes heavy truck engineering to a new level, providing optimum productivity at the lowest possible operating cost. Available in 4x2, 6x2 (mid-lift or tag axle), 6x4 and 8x4 configurations with advanced 4-valve head engines up to 500 horsepower, the J6P is a serious new contender on the global stage in the premium truck segment.

Product Parameter

Brand FAW
Steering wheel Left
Emission standards Euro 5(E5)
Strains Dump truck
Drive form 6×6
Working conditions Heavy load

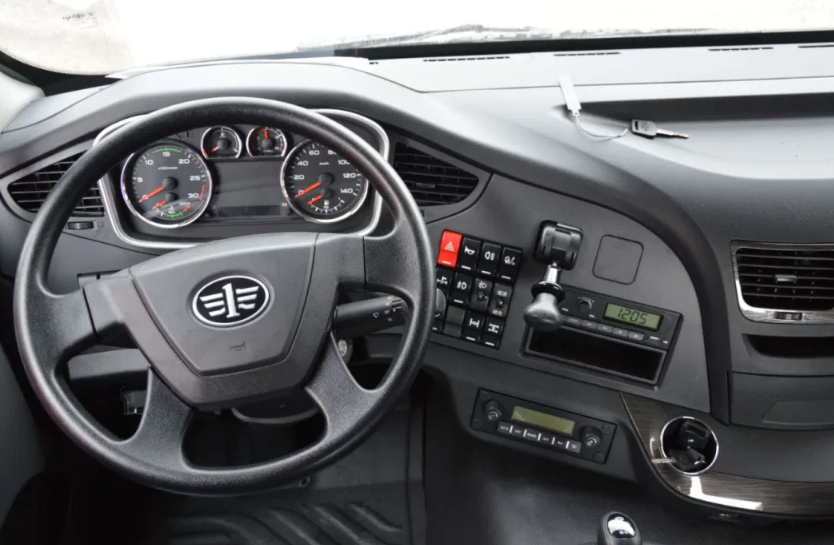

Cab configuration The 2017 J6P row semi-cab, LCD instrumentation, electric glass lift, power mirrors, driver's seat is electrically heated, and there is no driving recorder
Engine make and model Xichai CA6DM2-42E51(BOSCH Common Rail+SCR)
Power 420HP
Clutch specifications ф430 Clutch (Eaton)
Transmission torque and gear Gearbox CA10TAX190M2 transmission (ZQC2000, spline output power take-off)
Front axle F7D-2020 front axle (automatic adjustment arm, imported ABS, 2024 track, io=5.921)
Rear axle assembly Axle ф300 cast steel wheel reduction axle (automatic adjustment arm, imported ABS, double I. rod V cloth, 1878 wheel base)
Rear axle speed ratio 5.921
Wheelbase 3675+1350mm
Frame 300×80×(8+8)
Tire model Model 315/80R22.5 20-level tubeless (Double Money Pattern RLB450/Sunrise Pattern CM913A)
Color Pearl white

Detailed Photos

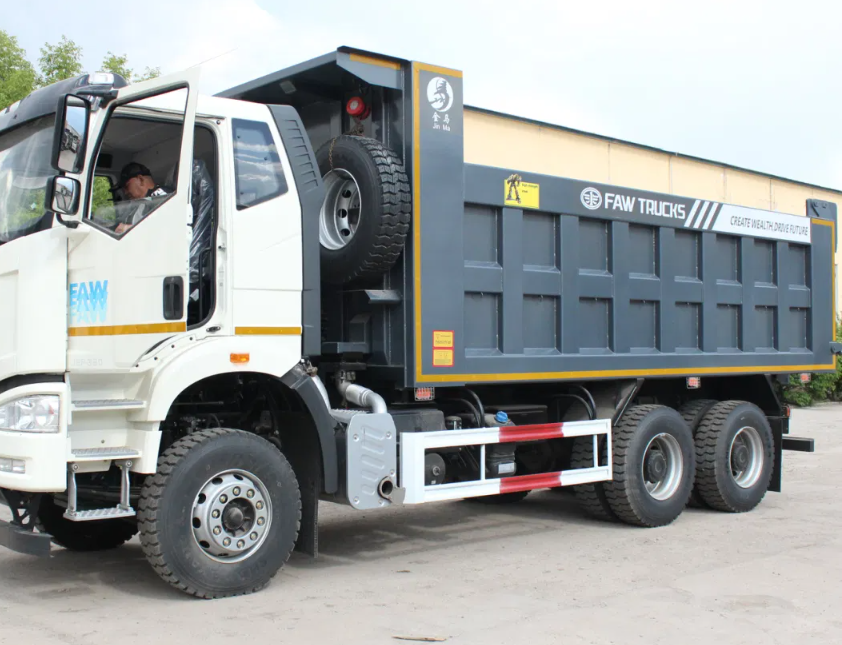

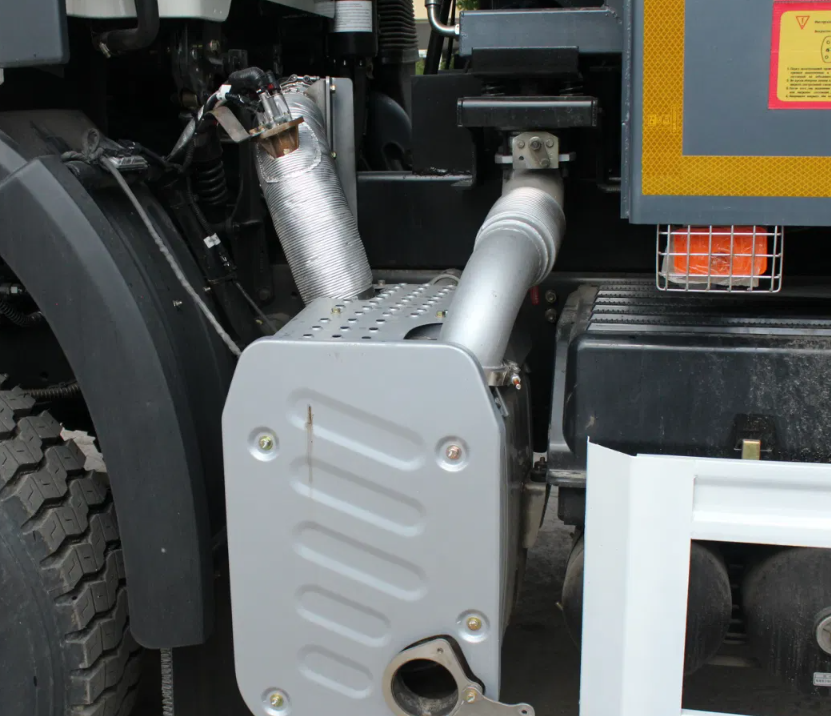

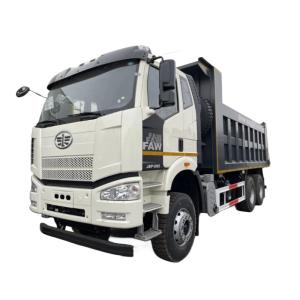

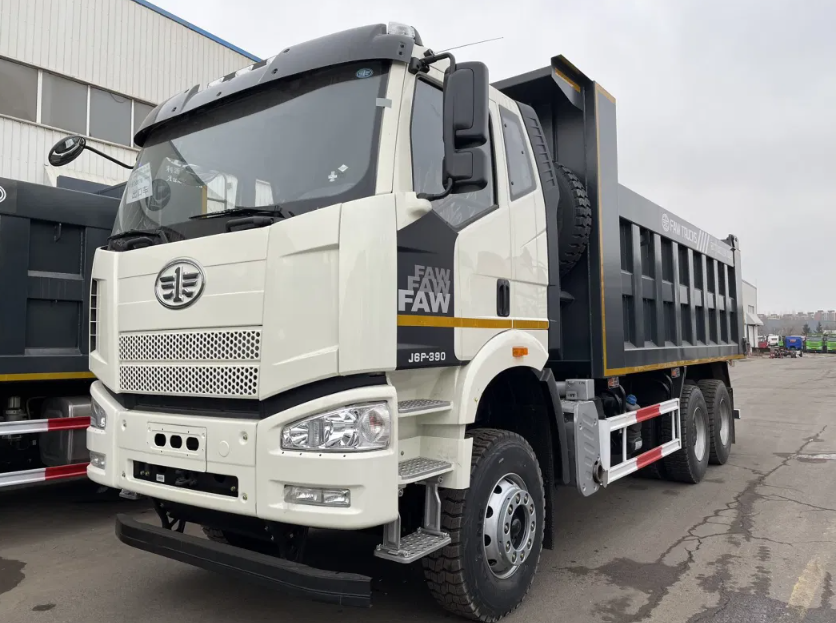

China FAW 6X6 420HP Euro5 All Wheel Drive Dumper Tipper Dump Truck

China FAW 6X6 420HP Euro5 All Wheel Drive Dumper Tipper Dump Truck

China FAW 6X6 420HP Euro5 All Wheel Drive Dumper Tipper Dump Truck
China FAW 6X6 420HP Euro5 All Wheel Drive Dumper Tipper Dump Truck
China FAW 6X6 420HP Euro5 All Wheel Drive Dumper Tipper Dump Truck
