FAW Jiefang New J6p Heavy Truck 420HP 380HP 6X4 5.8m Dump Truck

Product Categories

Shandong Heavy Industry Machinery Co.,Ltd.

Contact Now

FAW Jiefang New J6p Heavy Truck 420HP 380HP 6X4 5.8m Dump Truck

Brand Name : FAW

Model Number : CA3250P66K24LT1E6

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, T/T, D/A, Western Union

Supply Ability : 5000pcs/year

Delivery Time : Full payment 15-20 work days

Packaging Details : Naked, frame, container

Engine : CA6DM2-42E6

Emission standard : Euro VI

Displacement : 11.05L

Wheel base : 4050+1350mm

Gearbox : JAW CA12TAX230M

Overall Dimension : 5680×2030×2440mm

Contact Now

FAW Jiefang New J6p Heavy Truck 420HP 380HP 6X4 5.8m Dump Truck

Advantage:

This Jiefang J6P has a maximum allowable towing weight of 40 tons and a curb weight of 8.87 tons. The vehicle is equipped with Xichai CA6DM2-46E61 overhead camshaft diesel engine. The engine has a maximum net power of 338kW and approximately 460 horsepower, which meets the National VI emission standards. In addition to this 460-horsepower engine, Jiefang J6P can also choose from a power range ranging from 380 to 560 horsepower, which can meet the needs of most users for vehicle power and economy.

Product Parameter

Basic information
Model:	CA3250P66K24LT1E6	Drive form:	6X4
Wheelbase:	4050+1350mm	engine:	Xichai CA6DM2-42E6
Gearbox:	JAW CA12TAX230M	Body length:	8.7m
Body width:	2550mm	Body height:	3.4m
Front track:	2048mm	Rear wheelbase:	1878/1878mm
Vehicle weight:	12500kg	Rated load:	12370kg
Total mass:	25000kg	Tonnage level:	Heavy Truck
Approach angle:	24°	Departure angle:	25°
Fuel type:	disel	Market segments:	Mining Engineering
engine model:	Xichai CA6DM2-42E6
Number of cylinders:	6
Displacement:	11.05L	Emission Standards:	GB VI
Maximum horsepower:	420HP	Maximum output power:	309kW
Maximum torque:	2200N·m	Maximum torque speed:	1000-1400rpm
Rated speed:	1800rpm	Engine form:	Six-cylinder, in-line, supercharged and intercooled
Carton parameters
Carton length:	5800	Cargo box width:	2300
Cargo box height:	1500	Container form:	Self-unloading

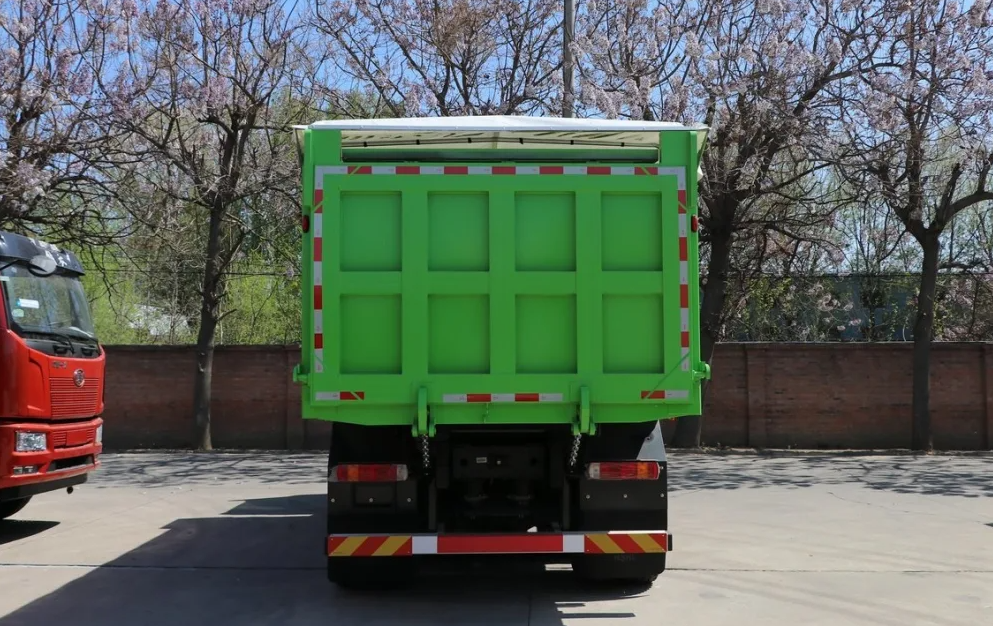

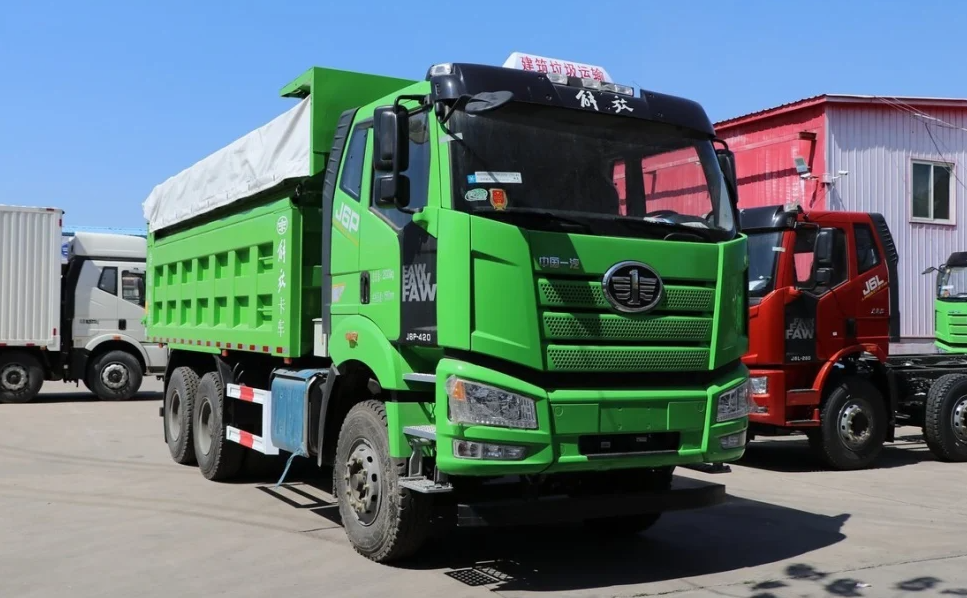

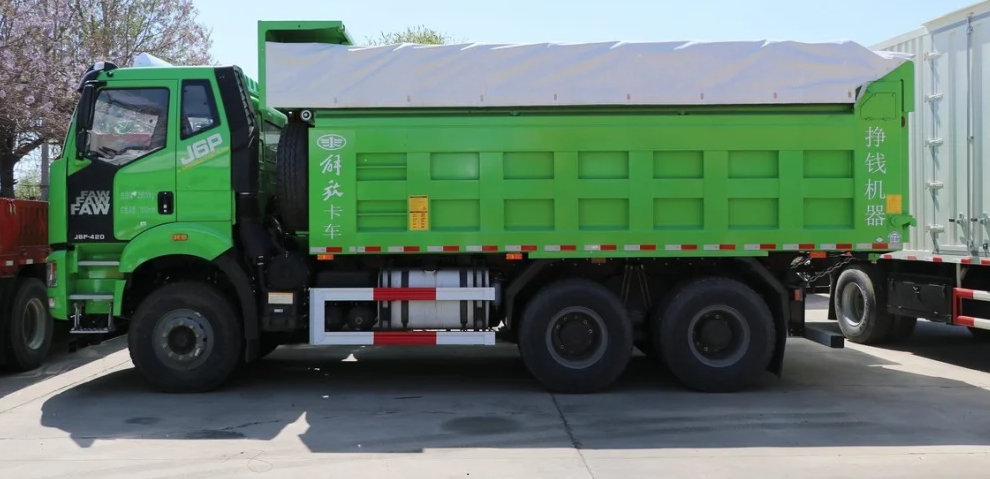

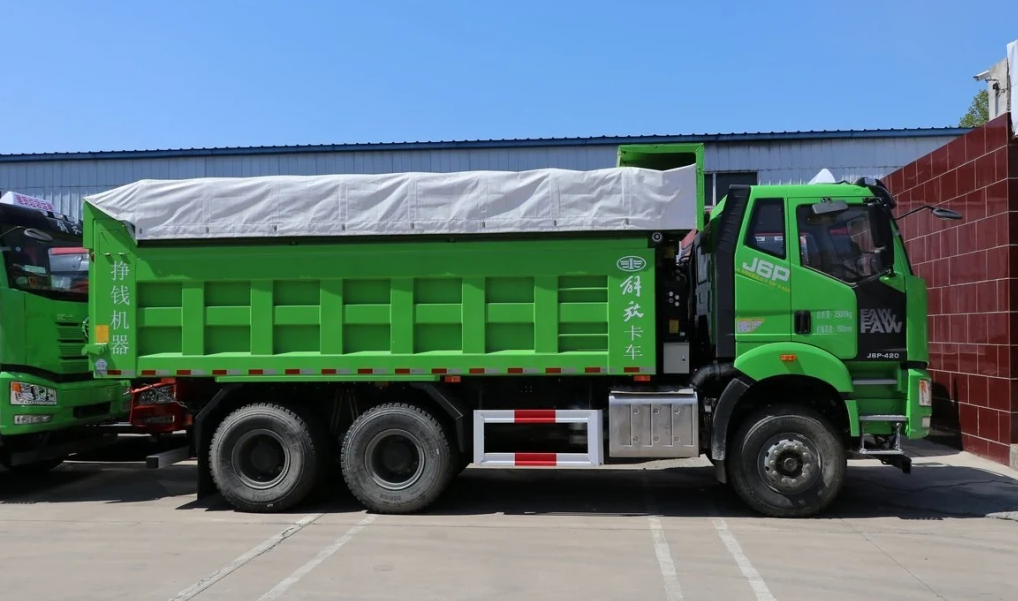

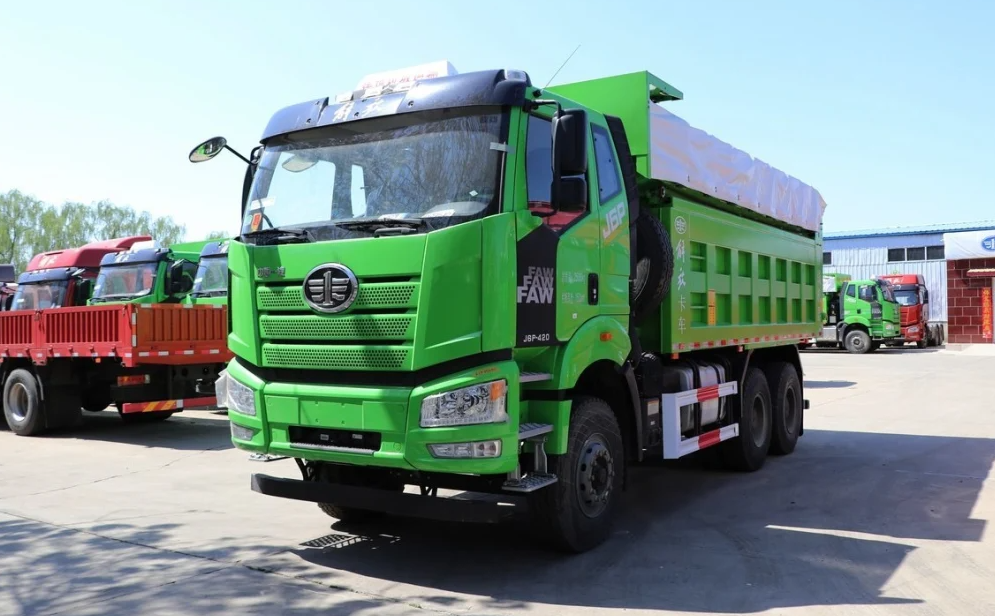

Detailed Photos
FAW Jiefang New J6p Heavy Truck 420HP 380HP 6X4 5.8m Dump Truck
