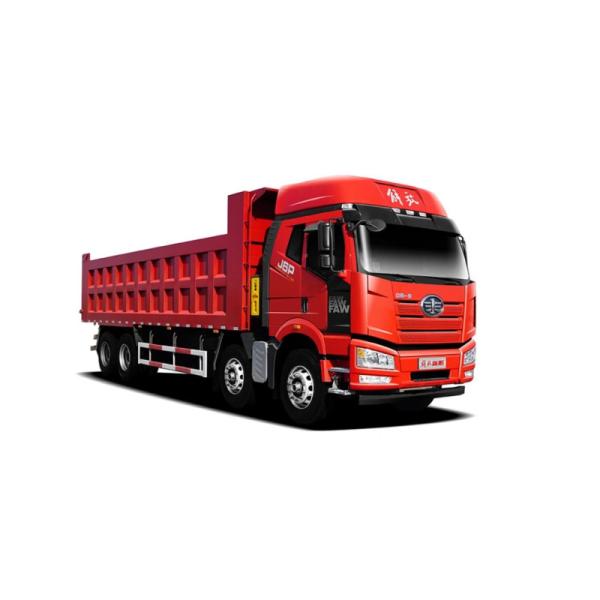

FAW 8X4 J6P/J5P 50 Ton 420HP Heavy Tipper Dump Truck With Air Brake
Advantage:
1. Lightweight design, lower center of gravity, higher passing.
2. Neat layout makes maintenance more convenient and durable.
3. The truck is easy to handle and technical content,performing efficient power with low emissions and has a human-oriented design.
4. DCEC engine + FAST transmission + DF DANA axle, Excellent power combination to meet all working conditions.
5. DF engine bring the best balance between loading request, fuel efficiency and emission. Powerful six cylinder engine, ensures engine power reserve, accelerating ability and grade ability. Reliable cold start performance with intake preheating, even at -35°C low temperature status.
6. The truck is equipped with ZF or Fast transmission. Proofed for many different road conditions and applications. With crawler gear, better grade ability due to higher 1st gear ratio, adaptable for off-road operations. Optimized ratio steps and bigger ratio spread provides less fuel and more power.
7. Rear axle provides high torque output and a wide ratio range. Integrated main reducer housing, secure light weight, high strength and good sealing performance. Patented lubrication pump technology for middle axle and oil lubrication on main components, will efficiently prevent burn-out of bearings.
Product Parameter
| Descriptions | Specifications and types |
| General | Truck Brand | FAW |
| Chassis Brand | FAW |
| Approx. Dimension | 11800*2500*3680 mm |
| GVW./Kerb Wt. | 31000 / 14955 kg |
| Cab | Cab Capacity | 3 persons' seat |
| Air Conditioner | Air Conditioner is optional |
| Chassis | Drive Type | 8X4,left hand drive |
| Fuel Type | Diesel |
| Engine Make & Model | FAW engine |
| Power | 420 Ps / 312 KW |
| Displacement | 11050 ml |
| Emission Standard | Euro II or EURO III or Euro IV |
| Brake | Air Brake |
| Wheelbase/No.of axle | 2100+4700+1350 mm / 4 |
| Tyre Specfication | 12R22.5,11.00R20,11.00-20,12.00R20 |
| Tyre Number | 12 tyres and 1 spare tyre |
| Max Speed | 83 km/h |
| Paint | Automative metallic paint |
| | Cargo body dimension | 8800*2300*1100mm (18-24CBM) |
| Structure& Function | Type of lifting :front lifting or ventral lifting Floor panel thickness(mm):8 Side panel thickness(mm): 6 Options: options dump trucks material thickness,hermetic seal, to fully sealed carriage, sealing cover forms: manual, hydraulic type |

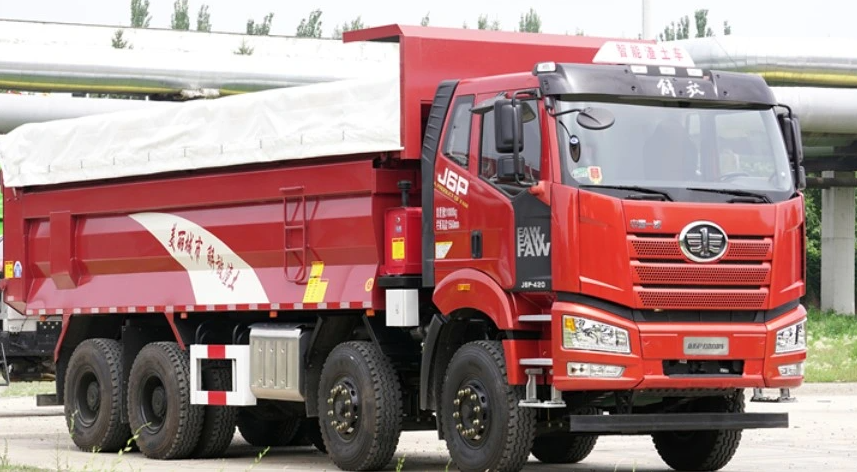

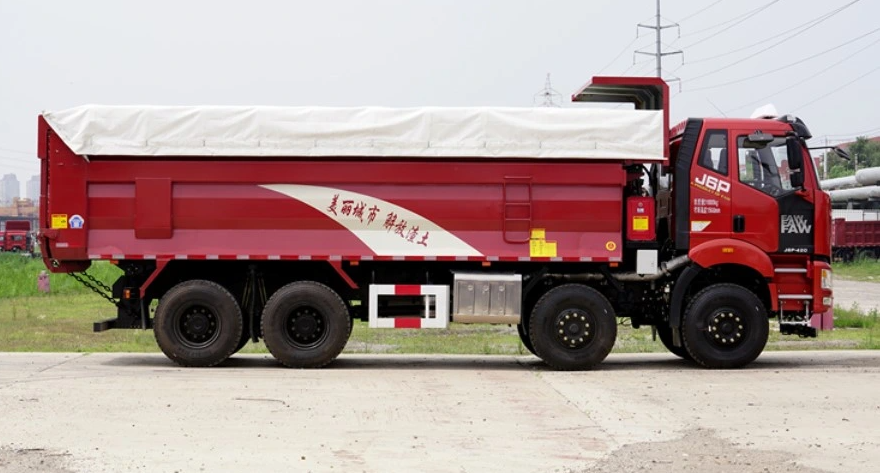

Detailed Photos
